CABEZA-85X
HEAD

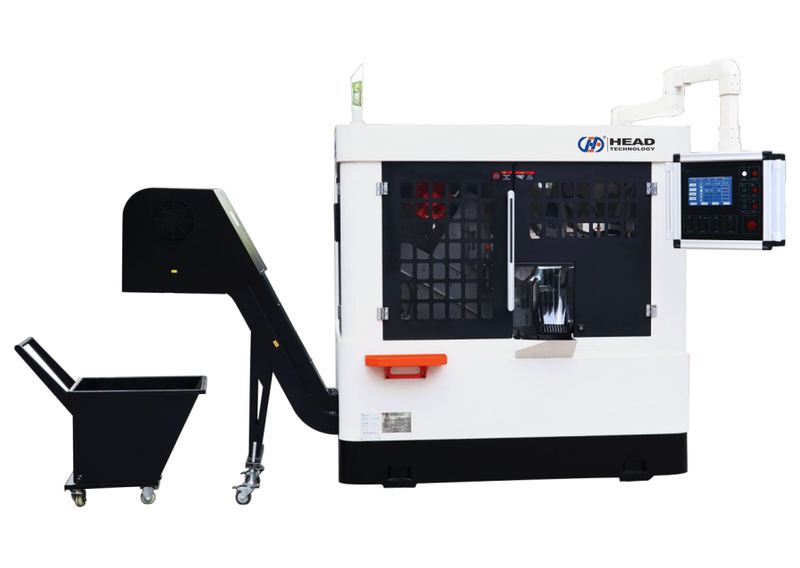

The automatic high-speed circular saw machine is suitable for high-speed cutting of high-hardness materials.
The cutting tools are mainly circular saws, using precision ball screws and high-precision linear sliding tables.
Using AC servo motor and excellent gear box to drive the circular saw blade to cut, to achieve the accuracy and stability of the circular saw.
The appearance is full-cover, beautiful and generous, and the man-machine operation is simple and intuitive.
Realize the operation and cutting of the fully automatic circular saw is simple, stable, fast and safe.
When working, cutting can set the cutting size, cutting quantity and size, which is convenient for users to cut multiple pieces of materials to meet different needs.
Moreover, the number of teeth of the circular saw blade depends on the thickness and material of the material to be cut, and there are different combinations of large and small teeth.

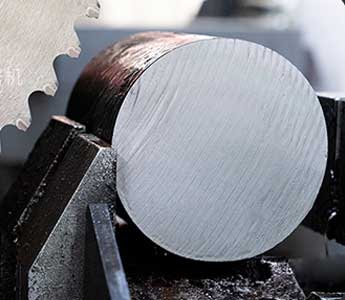

The cutting materials mainly include iron round material, square material, pipe material and profile.
Detail display

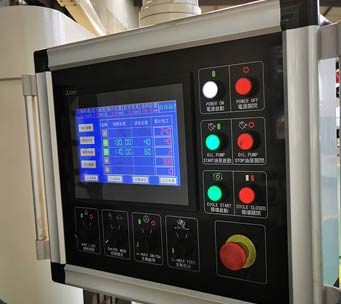

Interface
Convenient operation, the system adopts automatic control of Japan Mitsubishi PLC system
Use touch screen to input cutting operation parameters
Discharging Device
Convenient material collection and processing, realize the separation of finished product and material head

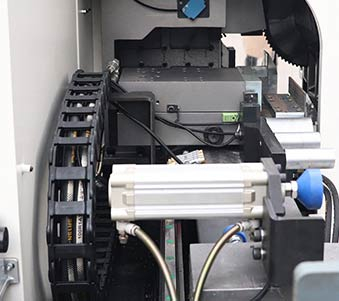

Servo feeding system
It adopts Hefu motor and high-precision ball screw for feeding, linear guide, overall yaw feeding, stable and fast feeding;

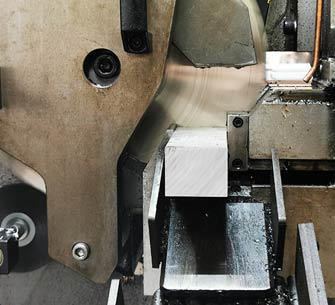

Hydraulic clamping
Adopt hydraulic rail clamping to ensure the stability of cutting bars and tubes during cutting
The loading and unloading and feeding systems are all operated by humans and machines, and sent to the PLC to send instructions to the sensors to automatically judge and distinguish the sorting of the material looking and the material end and the material end.
And has the function of automatically measuring and setting the cutting volume, which the user can easily control.
| ITEMS | 85X | |
| Capacity | ●10 - 85 mm ■10 - 65 mm ○10 - 85 mm □10 - 65 mm | |
|---|---|---|
| Using TCT hard circular saw blade | φ285t2.0~315t2.25 | |
| Single feeding length | 10~800 mm | |
| Rotation Speed | 20~150 rpm | |
| Moter | 9.5 KW | |
| Hydraulic oil capacity | 90 L | |
| Size | 7000*2900 mm | |
| Net Weight | 4200 kgs | |
The automatic high-speed circular saw machine is suitable for high-speed cutting of high-hardness materials.
The cutting tools are mainly circular saws, using precision ball screws and high-precision linear sliding tables.
Using AC servo motor and excellent gear box to drive the circular saw blade to cut, to achieve the accuracy and stability of the circular saw.
The appearance is full-cover, beautiful and generous, and the man-machine operation is simple and intuitive.
Realize the operation and cutting of the fully automatic circular saw is simple, stable, fast and safe.
When working, cutting can set the cutting size, cutting quantity and size, which is convenient for users to cut multiple pieces of materials to meet different needs.
Moreover, the number of teeth of the circular saw blade depends on the thickness and material of the material to be cut, and there are different combinations of large and small teeth.
The cutting materials mainly include iron round material, square material, pipe material and profile.
Detail display
Interface
Convenient operation, the system adopts automatic control of Japan Mitsubishi PLC system
Use touch screen to input cutting operation parameters
Discharging Device
Convenient material collection and processing, realize the separation of finished product and material head
Servo feeding system
It adopts Hefu motor and high-precision ball screw for feeding, linear guide, overall yaw feeding, stable and fast feeding;
Hydraulic clamping
Adopt hydraulic rail clamping to ensure the stability of cutting bars and tubes during cutting
The loading and unloading and feeding systems are all operated by humans and machines, and sent to the PLC to send instructions to the sensors to automatically judge and distinguish the sorting of the material looking and the material end and the material end.
And has the function of automatically measuring and setting the cutting volume, which the user can easily control.
| ITEMS | 85X | |
| Capacity | ●10 - 85 mm ■10 - 65 mm ○10 - 85 mm □10 - 65 mm | |
|---|---|---|
| Using TCT hard circular saw blade | φ285t2.0~315t2.25 | |
| Single feeding length | 10~800 mm | |
| Rotation Speed | 20~150 rpm | |
| Moter | 9.5 KW | |
| Hydraulic oil capacity | 90 L | |
| Size | 7000*2900 mm | |
| Net Weight | 4200 kgs | |
