Máquina de corte por chorro de agua
Los sistemas de corte por chorro de agua se utilizan cuando las influencias térmicas en el material no son deseadas y se requiere la máxima precisión.Convencen con flexibles opciones de procesamiento para una multitud de tareas de corte en una amplia variedad de materiales.
  • Highly precise and without thermal influence

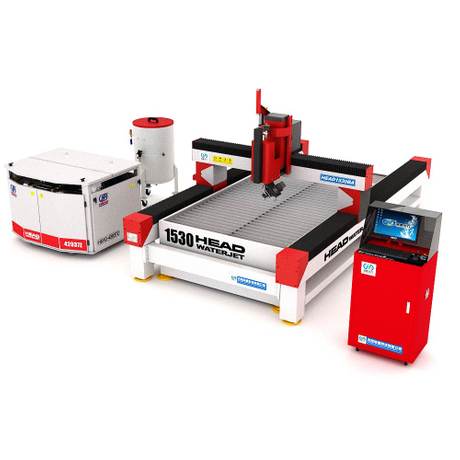

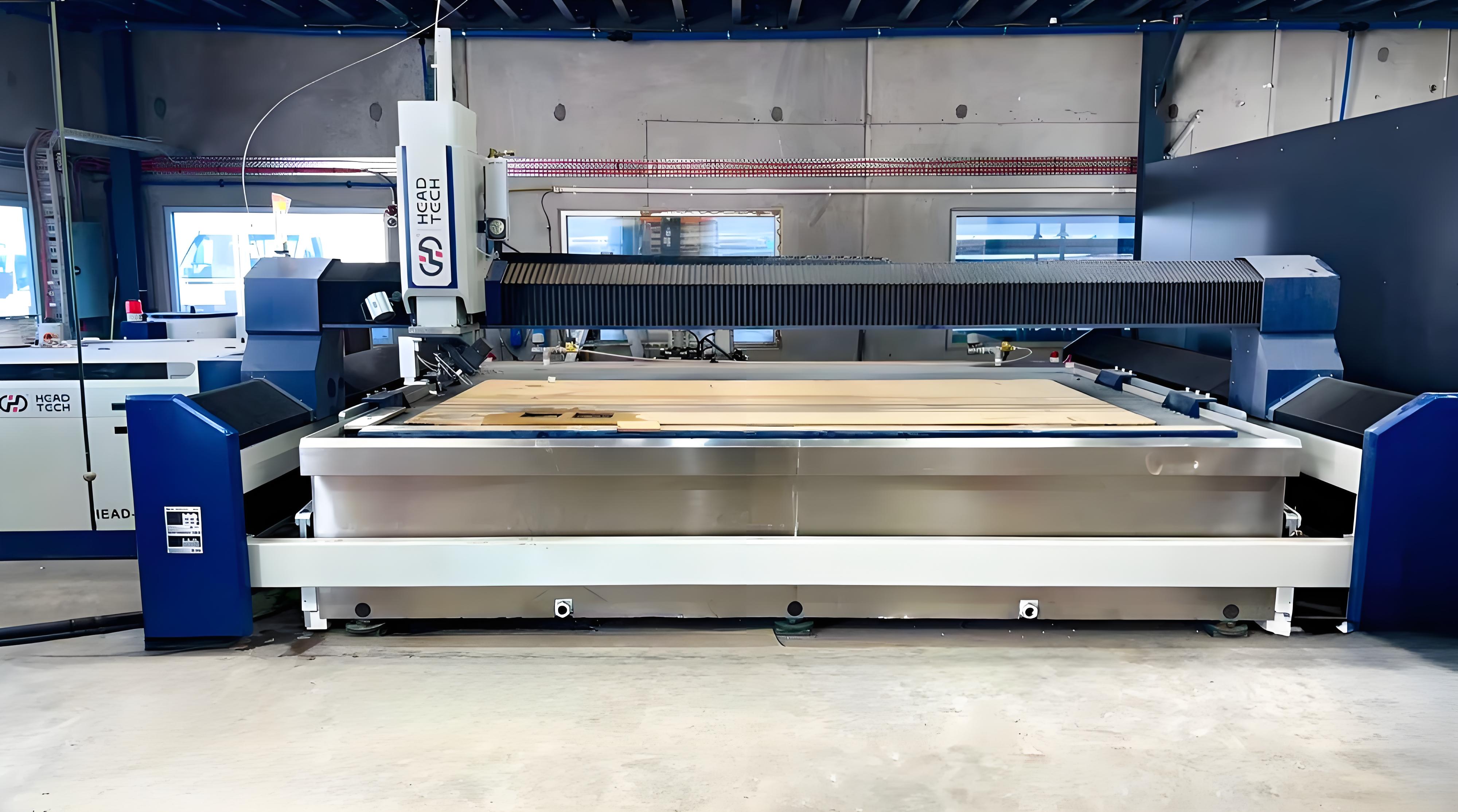

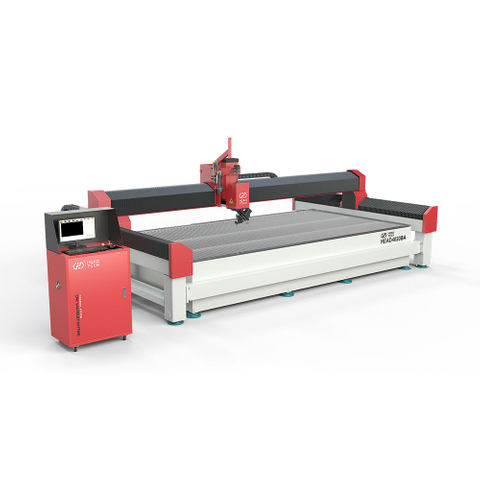

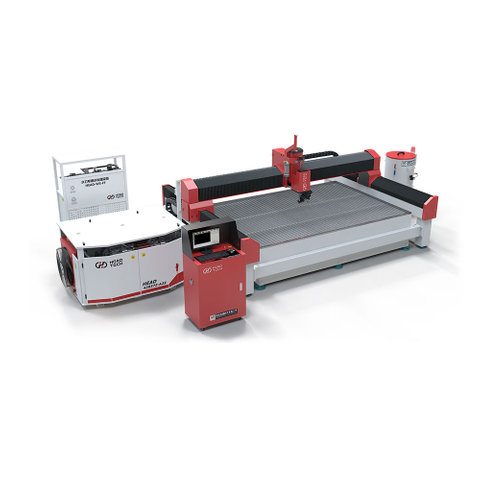

    This is a high-precision CNC waterjet cutting machine designed to machine a wide variety of materials, including those that cannot withstand thermal or mechanical stress.

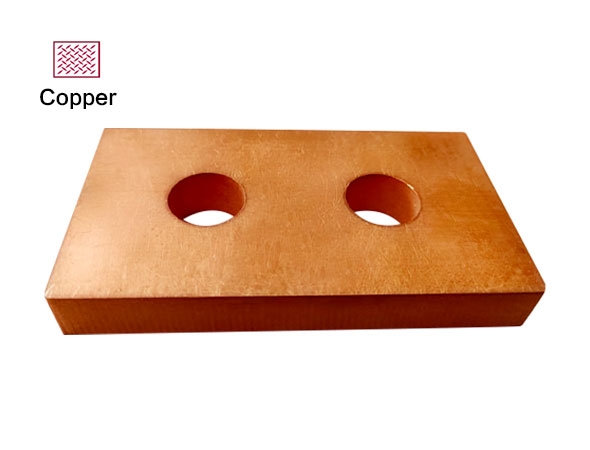

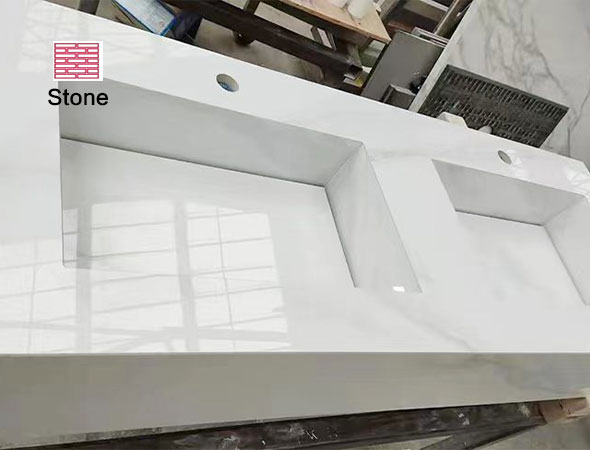

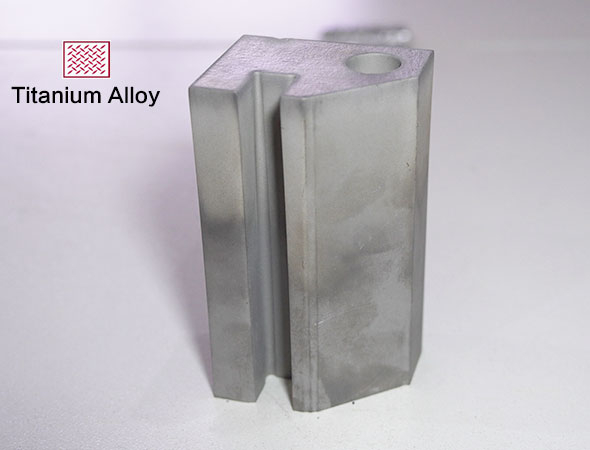

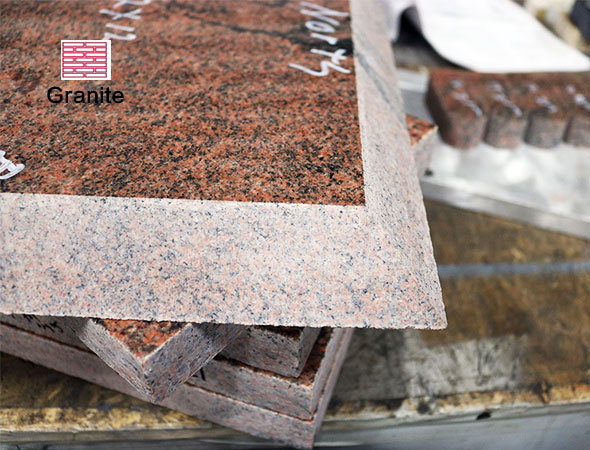

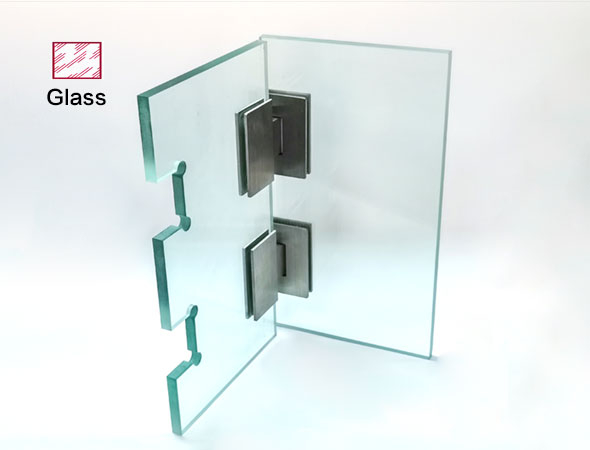

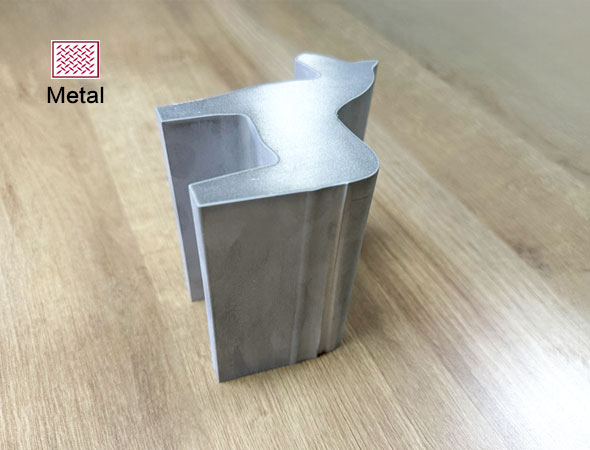

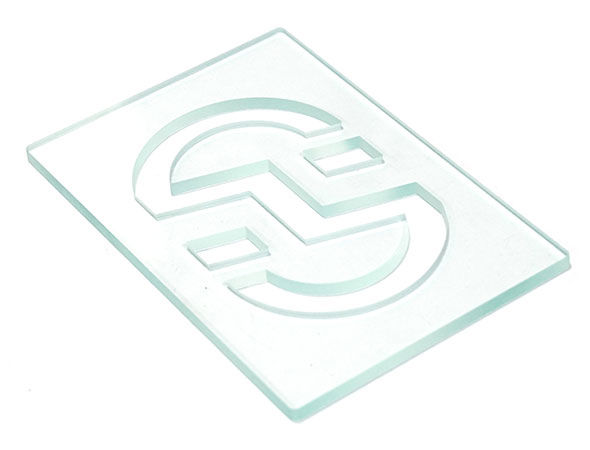

    Pure water or abrasive cutting can be applied to metal, stone, marble, tempered glass, ceramics, plastics, wood, thick corrugated cardboard, foam and sandwich materials, etc.

    The machine can be equipped with a 75 degree 5-axis waterjet rotator for bevel cutting, combined with plasma, pipe and profile cutting or tapping. Additional features include Additive Bevel Processing (ABP) and Taper Compensation (ABC).

    • Cutting accuracy +/- 0.1mm
    • Positioning accuracy +/- 0.02mm
    •PC control 17" touch screen
    •NcStudio PC1MC=6A software *changes DXF documents from AutoCAD into NC process
    •Serial communications between PC and CNC. Open database can shore parameter, click the material parameter will be loaded automatically
    •Calculate length of line and cut-in automatically
    •Control cut-out and cut-in automatically

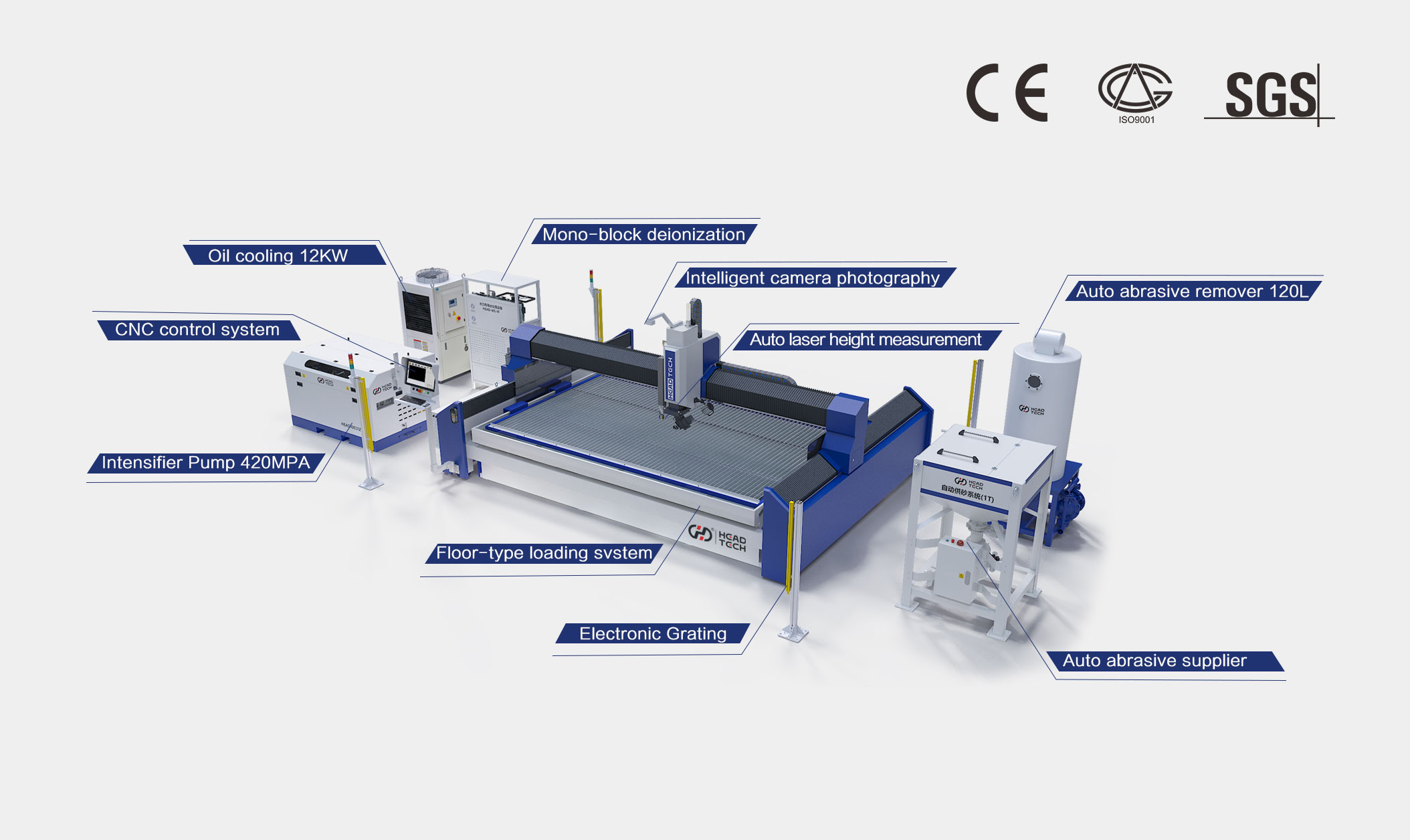

    •High Pressure Pump from 3800 Bar/55,000 Psi - 4137 Bar/60,000 made by Accustream/Hypertherm USA
    •Cooling system
    •Abrasive feeder
    •Water cleaning gun
    •Tool kit
    •Consumables for one year
  • Technical specifications

    X Y Positioning Accuracy ≤±0.05 mm per 300 mm
    Positioning Accuracy +/-0.02 mm
    X,Y dry-run Speed  0-15m/min (if need 30m/min speed,we can do as request )
    Cutting Accuracy  ±0.1mm
    Repeat Accuracy   ≤ ±0.03mm
    Max. Speed X, Y  10000mm/min

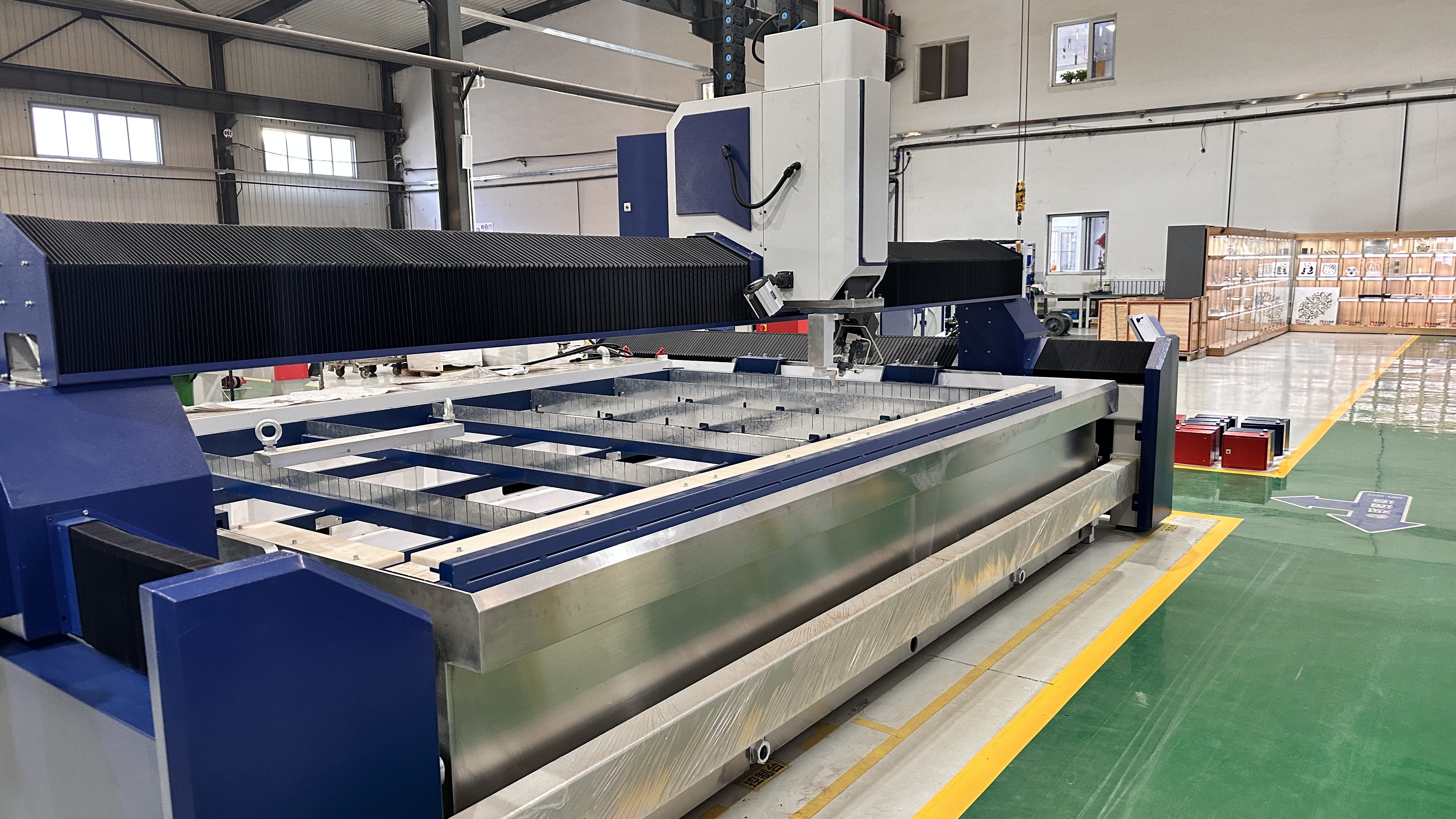

    • Water jet working table independent of the frame, eliminate vibrations and  temperature deformations; keep long time of work.
    • Water tank is reliable and durable, made of steel 5 mm thick.Height 750 mm, convenient for loading and unloading
    • • Slope-type folding cloth protection structure prevents the accumulation of sand splashed during water cutting, which affects the accuracy and life of the stroke.
    • • Z axis is equipped with a lighting system, which is convenient for monitoring and equipment maintenance during equipment operation
    • • Dedicated thick metal cutting water tank, platform load-bearing capacity is 500kg more than similar competing products, longer service life


    • • Integrated integrated CNC system, suitable height, ergonomic design concept The display can be rotated 360 degrees to meet the needs of the operator from all angles
    • • Upgrade to IP65 waterproof and dustproof computer, keyboard and mouse IP65
    • • Increase the splash protection to improve the safety and life of the equipment
    • • An air-conditioning control system is added inside the CNC cabinet. Most of the cooling systems on the market are still cooled by fans to ensure the operating temperature of the electrical components of the equipment and improve the stability of the equipment.
    • • A lighting system is added inside the CNC cabinet to facilitate equipment maintenance and reduce the difficulty of operator maintenance2023-3-1 集成控制柜细节展示(一体控制柜)32023-3-1 集成控制柜细节展示(一体控制柜)1
    • • Function to continue from the same point after stopping.
    • • Automatic programming function.
    • • Pre-cut path simulation function
    • • Automatic tool compensation adjustment function.

    图片9图片10

Priorizando la calidad, la consistencia y la precisión

Somos HEAD Waterjet y también ofrecemos soluciones de corte personalizadas

Fabricamos y proporcionamos soluciones de chorro de agua altamente productivas, confiables e intuitivas.

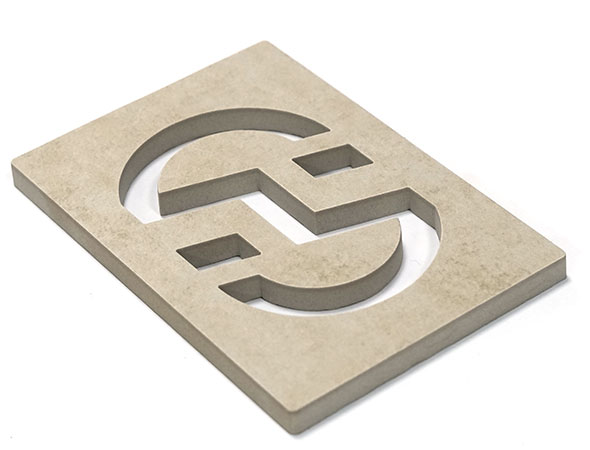

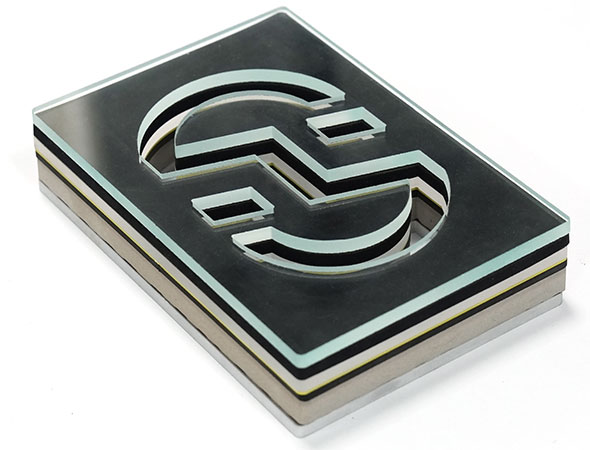

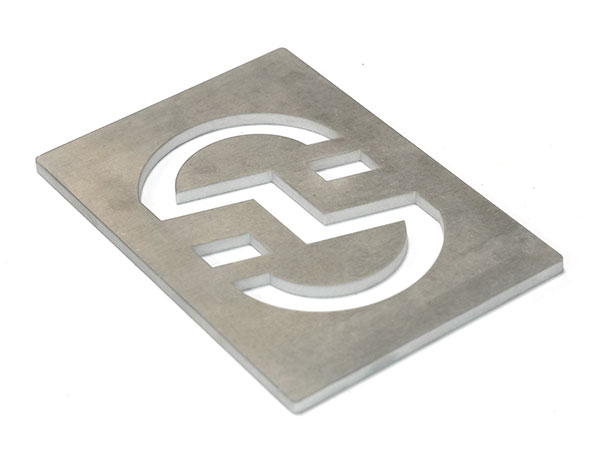

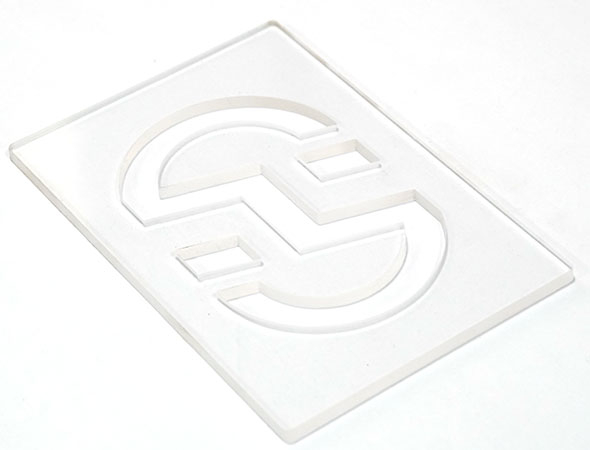

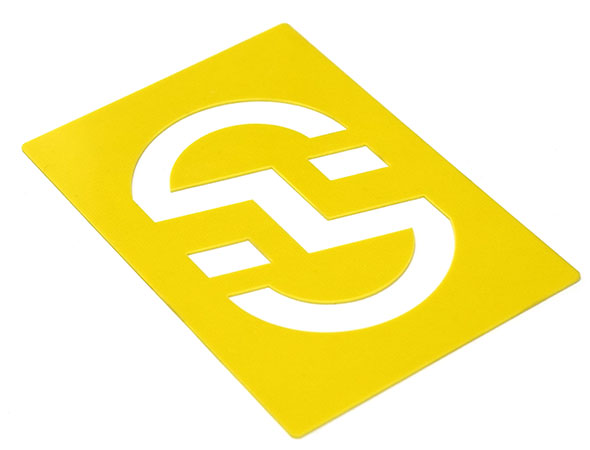

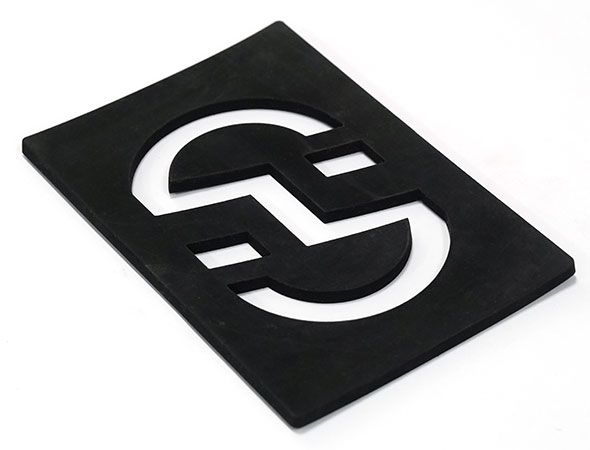

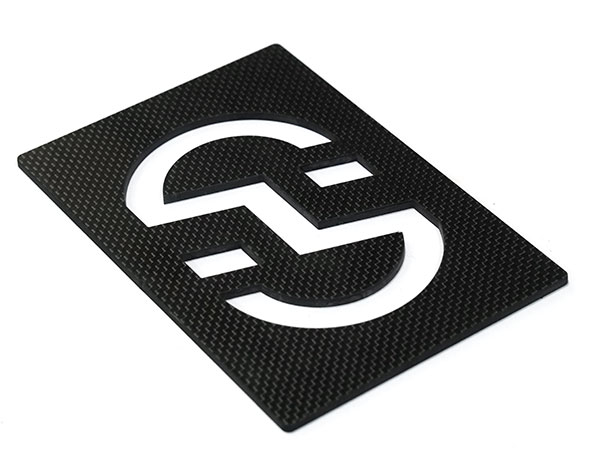

Muestras de corte de agua aquí
Con el fin de brindarle una comprensión más intuitiva de nuestros productos, proporcionamos un corte de muestra gratuito, con la esperanza de que pueda comprender rápidamente el principio de funcionamiento y las características de nuestro corte por agua.
Equipo técnico local profesional de posventa
Brindamos asesoramiento experto de técnicos calificados.Estamos comprometidos a proporcionar un soporte de vanguardia para las máquinas de corte por chorro de agua para que la industria siga avanzando.
Industrias a las que servimos

Durante más de una década, hemos construido e instalado miles de máquinas de corte por chorro de agua en una cartera diversa de industrias para satisfacer necesidades específicas de fabricación y corte de materiales.

Como la cabeza tiene una sólida investigación y desarrollo, el equipo de ventas y servicios de producción, Shenyang Head Science and Technology Co., Ltd se ha convertido en empresas bien conocidas en el campo de WaterJet.
